4G DTU

Reliable Networking and Transparent Data Communication Interface

It adopts high performance industrial wireless module, high stability and high precision components, extremely wide temperature design, easy to adapt to high temperature and cold working environment, supports data transparent transmission, and can adapt to any standard or non-standard user protocols.

Supporting standard TCP/IP protocol and UDP protocol

Embedded standard TCP/IP stack and UDP protocol can integrate multiple networks and provide stable and reliable services.

Rich communication interface

Provide standard RS232 and RS485 (or RS422) interfaces, can directly connect to serial devices, user equipment to provide remote maintenance channels.

Story

Industrial DTU application scenarios

Widely used with power systems, industrial networking, smart cities, meteorological monitoring, smart agriculture, water conservancy construction and other Internet of Things application scenarios.
Story

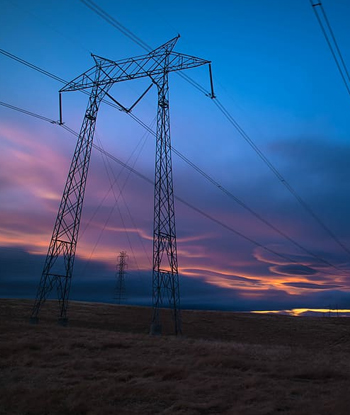

electric power system

Widely used in power generation, substation, transmission, distribution, intelligent station area, power equipment safety monitoring, intelligent meter reading, rural power grid transformation and other directions.

Story

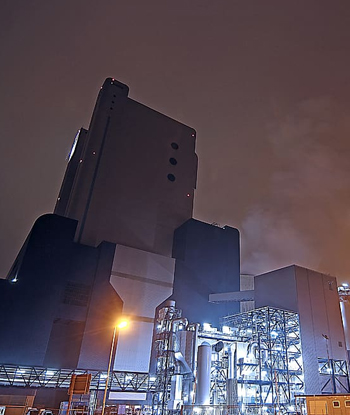

Industrial networking

Industrial applications such as factory automation, traffic automation, power automation, valve/pump control. Utility Automation, Self-Service Machine/ATM/POS System

Story

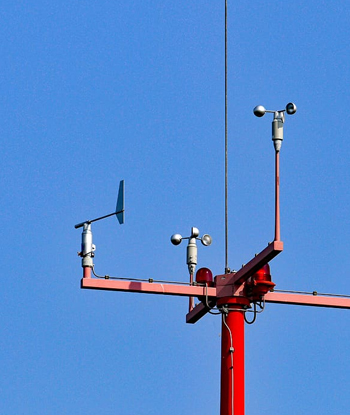

Meteorological disaster

Automatic weather station wireless networking, mountain torrent warning, precursor station ninety-five and five-year renovation of seismic industry monitoring, geological hazard wireless monitoring applications, etc.

Story

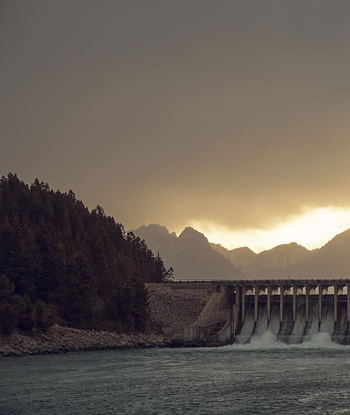

Water Conservancy Construction

Automatic hydrological monitoring, reservoir safety monitoring, sluice monitoring, water supply network monitoring, landslide monitoring, flood control and disaster reduction, groundwater monitoring, river monitoring and environmental protection monitoring and other wireless monitoring applications.

Story
Smart city

Shared bicycle wireless networking, intelligent express cabinet, urban waterlogging monitoring; intelligent charging pile wireless networking, urban heating, fire warning, intelligent well cover, intelligent traffic supervision, urban water supply wireless dispatching monitoring system and other wireless applications.

Story
Intelligent agriculture

Data analysis of temperature and humidity data monitoring, on-line monitoring and early warning of agricultural environment, real-time monitoring and so on.

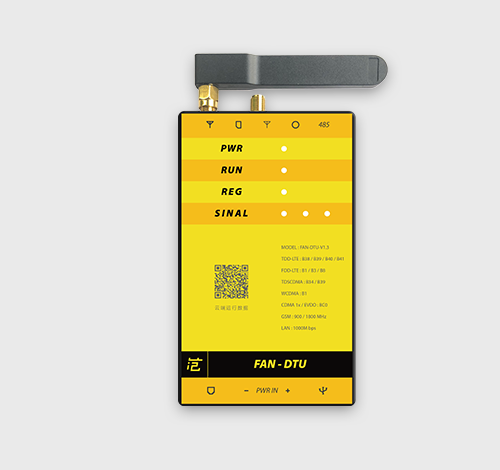

FAN-Industrial Grade 4G DTU-V3.0 Product Specification

Product characteristics
  • Supporting 9-12V POE power supply
  • Supporting 9V/12V power supply
  • Safety protection function of on-board power supply, over-voltage and over-current protection
  • Industrial grade operating temperature, -40 to 85 degree harsh environmental testing
  • RS485 Bus
  • 4G All Netcom Compatible with Three Operator Networks
Hardware
Model FAN-DTU-V3.0
Chipset MDM9X07 Qualcomm
CPU Cortex A7 1.2G Hz
MEM 256MB
FLASH 512MB/User Available ~80MB
USB 1 x USB 2.0
LED PWR、RUN、NET STATUS、SIGNAL
GPS
WiFi antenna 2 X 4G
4G/3G antenna
External interface USIM/SIM card slot*1
Button Reset/restart*1
Power Supply 12V Phoenix MC 1,5/ 2-STF-3,5– 1847055
5V USB
2G/3G/4G network
Frequency band
  • FDD LTE: B1/B3/B8
  • TDD LTE: B38/B39/B40/B41
  • TDSCDMA: B34/B39
  • WCDMA: B1/B8
  • CDMA2000 1x/EVDO: BC0
  • GSM: 900/1800
Specifications LTE DL:150Mbps, UL:51.0Mbps (Category 4)
TD-SCDMA DL:4.2Mbps, UL:2.2Mbps
WCDMA DL:42Mbps, UL:5.76Mbps
GSM DL:384Kbps, UL:384Kbps
Software
software system Support Windows, Linux
Language Default Chinese, support multi-language customization
Interface
LAN 1X 1000M Ethernet (optional dual network card version)
data interface RS485 Bus
DHCP Max. to 256 User
DDNS TBD
VPN
Others
Packaging Content USB Charging Line*1
User Manual*1
4G DTU Equipment*1
Dimension (mm) 105*68*26mm
Weight (g) 110g
Working temperature range -40~85
