EC20 LTE USB Dongle V2.1

Feature:

USB 2.0 high-speed interface

Multi-system support Windows\Linux\Android

Cat 4 150Mbps downlink

Qualcomm chip

Industrial grade stable and reliable

Purchase Channel
Qualcomm chip solution
Industrial LTE Cat 4 wireless communication module
High-speed 4G LTE mobile connectivity
Supports a maximum downlink rate of 150Mbps and a maximum uplink rate of 50Mbps
USB 2.0 high-speed interface
Multiple interface support to meet different equipment access
Story

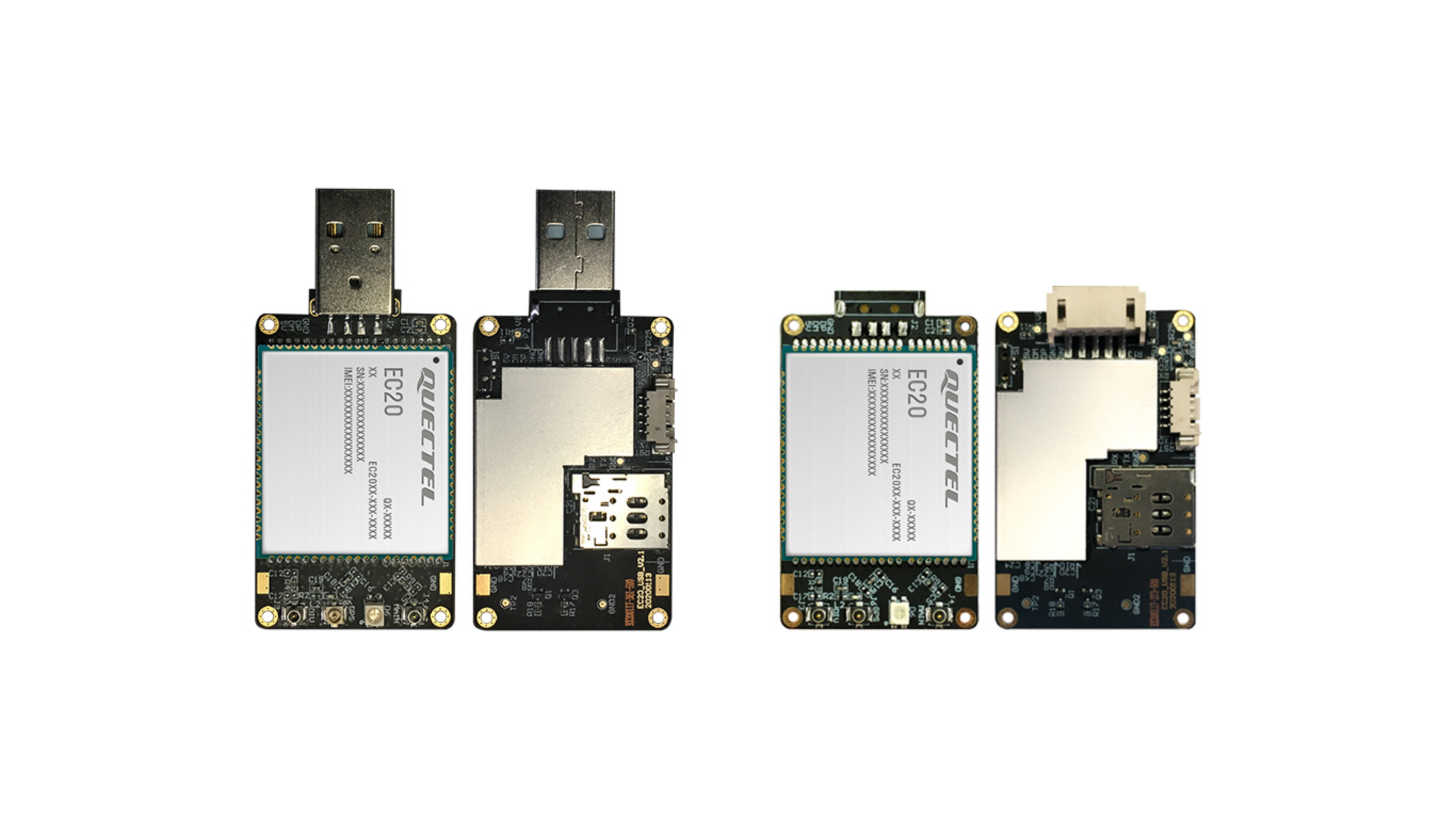

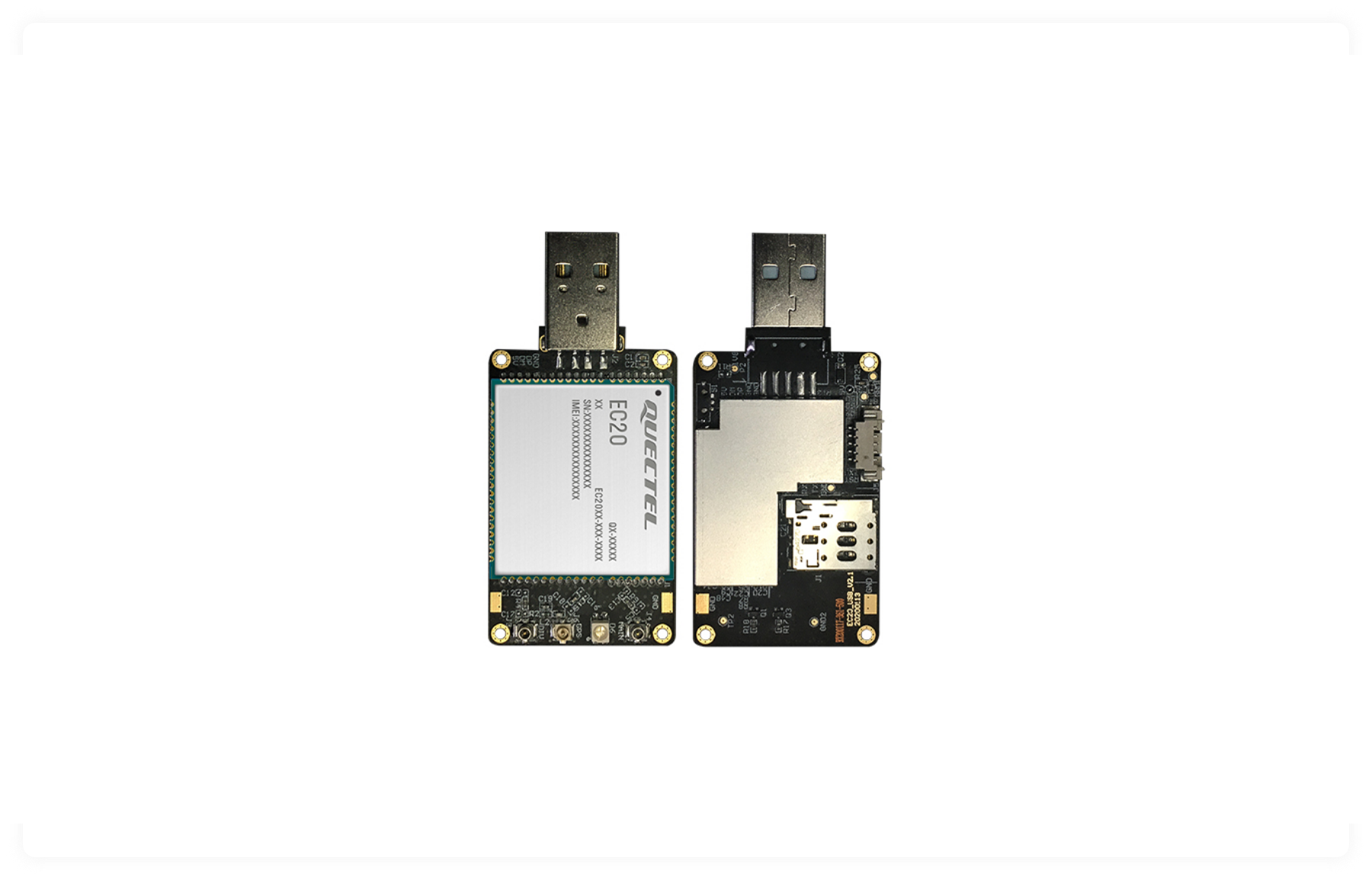

LTE USB Dongle
IoT 4G Communication Solutions
It adopts an LTE Cat 4 wireless communication module specially designed for M2M and IoT fields, adopts 3GPP Rel. 11 LTE technology, and supports a maximum downlink rate of 150 Mbps and a maximum uplink rate of 50 Mbps.

◆ Comprehensive coverage of various network standards

◆ Provide drivers, applicable to Windows/Linux/Android and other operating systems

◆ Support external antenna, in the environment with poor signal, you can choose external antenna to enhance the signal

◆ Support TCP/IP/IPV4/IPV6/Muli-PDP/FTP/FTPS/HTTP/HTTPS/DNS and other communication protocols

◆ USB 2.0 high-speed interface, convenient for direct access to mainstream ARM, X86 motherboards or other industrial computers for networking

◆ Onboard UART interface, with hardware flow control, easy to connect to main control boards such as Arduino/STM32

◆ Nano SIM card slot, supports 1.8V and 3V SIM cards

◆ Onboard LED indicator, easy to check the operating status of the module

◆ It provides a variety of interfaces for its choice to meet the needs of different application scenarios

Full support for mainstream systems
Support a variety of drivers and software functions (such as USB virtual serial port driver under Windows 7/8/8.1/10, Linux, Android and other operating systems)

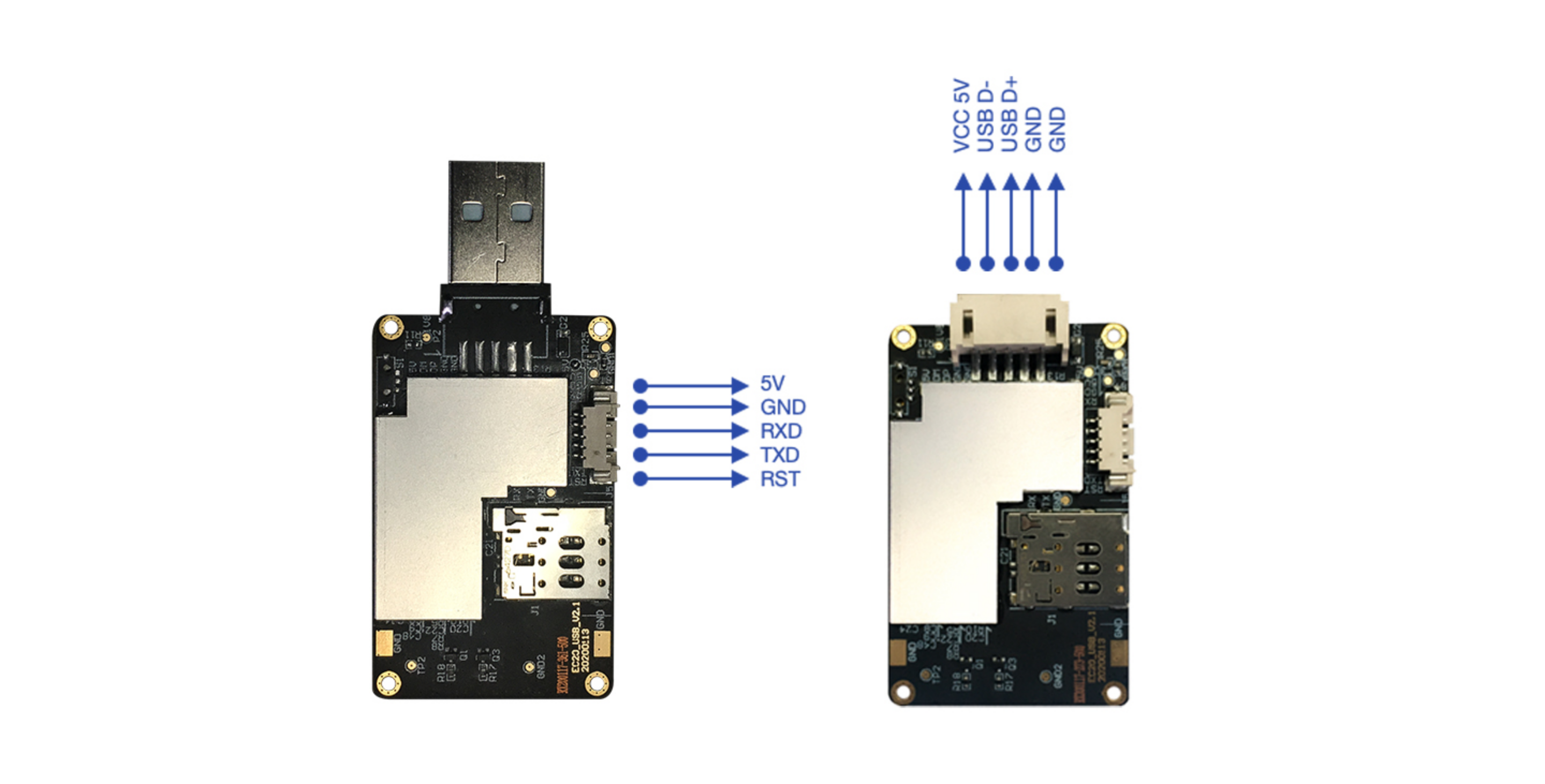

Multiple interface support
Provide standard USB interface, 2.0mm 5PIN horizontal USB interface, UART interface

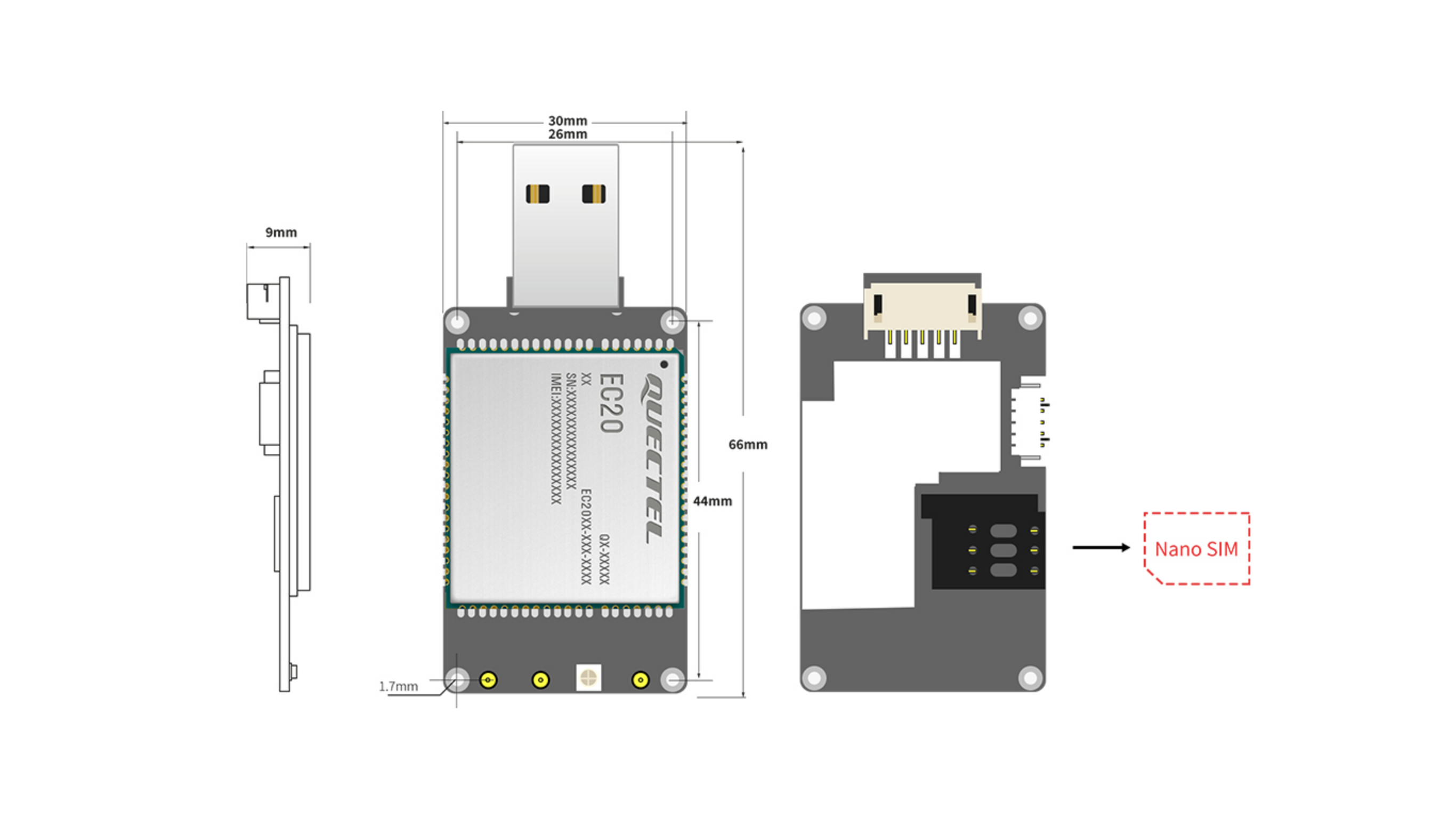

Specification
*Dual antenna version supports diversity antenna, does not support GPS
*GPS version does not support diversity antenna, supports GPS
*Single antenna version does not support diversity antenna and does not support GPS
Application

Wireless industrial equipment

Unmanned self-service equipment

PC computer

Industrial IoT
